CONTENTS AND SPECIFICATIONS
-
PACKAGE CONTENTS

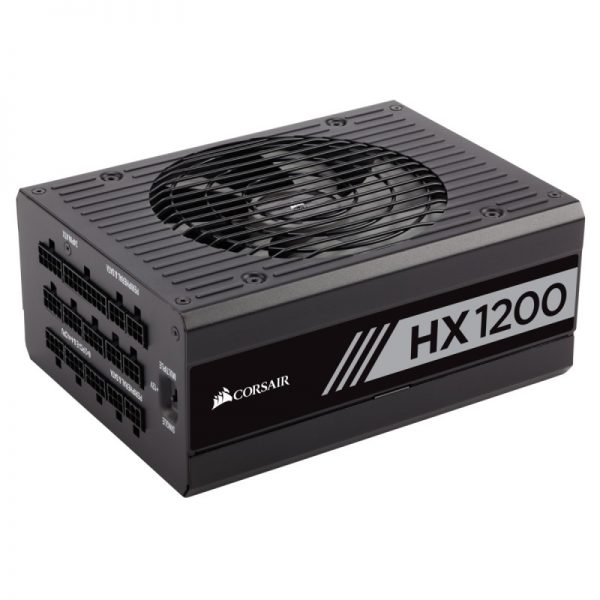

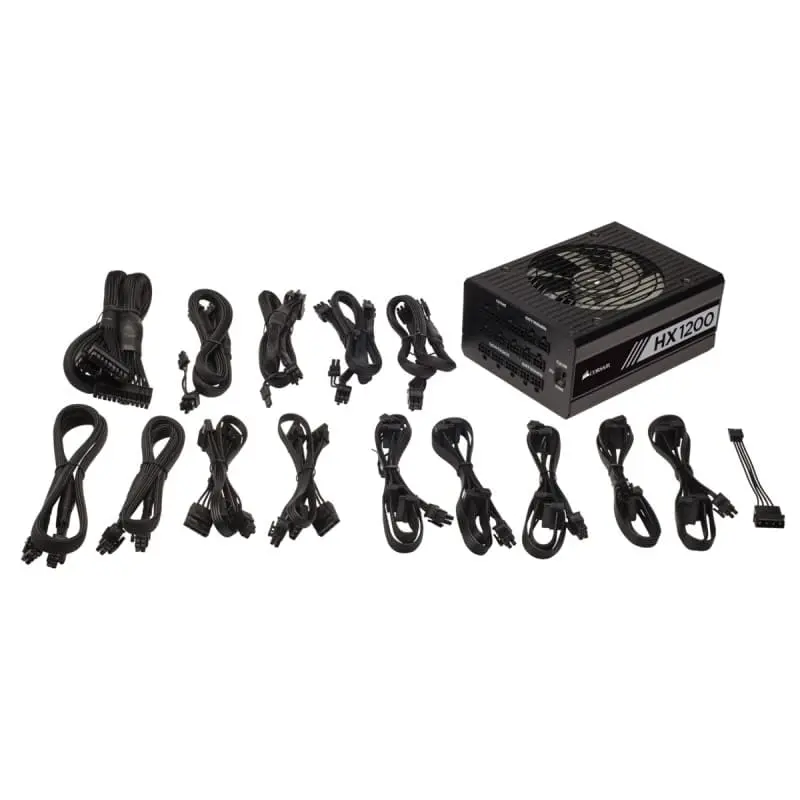

- HX Series ATX Power Supply
- Power cord
- Mounting screws
- Cable ties
- Corsair case badge
- User manual
-
COMPATIBILITY
- ATX12V v2.4 and EPS 2.92 standards
TECH SPECS
|
ATX Connector
|
1 |
|
Ability to toggle singlemultiple 12V rails
|
No |
|
ATX12V Version
|
v2.4 |
|
Continuous output rated temperature C
|
50°C |
|
Continuous power W
|
1200 Watts |
|
Corsair Link Support
|
No |
|
Fan bearing technology
|
Fluid Dynamic Bearing |
|
Fan size mm
|
135mm |
|
MTBF hours
|
100,000 hours |
|
Multi-GPU ready
|
YES |
|
Power
|
1200 Watts |
|
Warranty
|
Ten years |
|
80 PLUS Efficiency
|
Platinum |
|
PSU Form Factor
|
ATX |
|
Zero RPM Mode
|
Yes |
|
Cable Type
|
Low-Profile, All Black |
|
C-Link Ready
|
No |
|
Dimensions
|
150mm x 86mm x 200mm |
|
EPS Connector
|
2 |
|
Floppy Connector
|
1 |
|
Modular
|
Fully |
|
PCI-E Connector
|
8 |
|
Plug Type
|
NA |
|
SATA Connector
|
16 |
